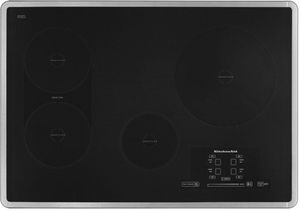

KitchenAid® Architect® Series II 30" Stainless Steel Induction Cooktop


Model #:

KICU509XSS

KitchenAid® Architect® Series II 30" Stainless Steel Induction Cooktop-0
KitchenAid® Architect® Series II 30" Stainless Steel Induction Cooktop-1
KitchenAid® Architect® Series II 30" Stainless Steel Induction Cooktop-2

At a Glance

Product Dimensions 3.13"h x 30.75"w x 21.31"d

This 30-inch induction cooktop uses electromagnetic energy to generate instant heat directly to your cookware without spreading the heat across the entire cooking surface. A bridge function lets you combine the power of two elements into one large cooking zone for specialty cookware such as a griddle or oval pan.Read More

Sale $2,114.10

$2,349.00

Save $234.90

What We Offer

Related items:

Get to know this product.

Product Overview

Product Overview

2 Elements with Bridge Function

Allows the flexibility to convert two cooking zones into one large cooking zone which provides additional space to accommodate specialty cookware.

12 Heat Level Settings

Provide various levels of heat to fine tune cooking techniques ranging from melting chocolate and simmering a sauce to searing meat or achieving a rapid boil.

4-Element Cooktop

Provides four independent cooking surface areas.

Performance Boost

Allows you to exceed the maximum heat-level setting for up to 10 minutes, perfect for rapid boiling

Melt and Mold

Uses low power levels for melting delicate ingredients or keeping cooked food warm without scorching.

Touch-Activated Controls

Integrate seamlessly into the surface and include a slider for heat-level selection

Simmer Function

Automatically selects a low power level to help maintain a constant simmer without boiling over.

Pan Size Detection

Provides feedback on whether pan size is suitable for the selected element.

Control Lock

Helps prevent unintended use and makes it easier to clean the control panel

Useful Documents
Specifications

General Specs

ColorStainless Steel
Color-Finish NameStainless Steel
Fuel TypeElectric
Element TypeInduction
Number of Elements/Burners4
Cooktop SurfaceGlass Top
Cooktop FeaturesIndicator Light – Hot Surface, Safety Lock, Bridge Element, Pan Presence Sensor
Smart CompatibleNo
Downdraft VentilationNo
Commercial Use ApprovedNo
Appliance Fit Width (in.)30
Width (in.)30.75
Depth (in.)21.31
Height (in.)3.13
ADA CompliantNo
ENERGY STAR CertifiedNo
Manufacturer Warranty1 Year
CollectionArchitect® Series II
Voltage240
Frequency60
Amp40/50

Appearance

Digital DisplayYes

Dimensions

Cutout Depth19-5/16 in
Cutout Width29-1/2 in

Cooktop Details

Left Rear Element-Burner TypeBridge
Right Rear Element-Burner Power3700W/2300W
Left Front Element-Burner TypeBridge
Hot Surface Indicator LightYes
Cooktop Surface MaterialCeramic Glass
Heating Element On Indicator LightYes
Automatic Pan DetectionYes
Right Front Element-Burner Power1800W/1400W
