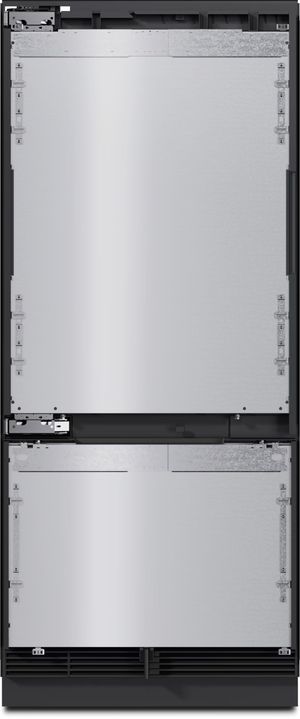

Miele 36" Panel Ready MasterCool Built-In Bottom Freezer Refrigerator


Model #:

KFMC3642L

Miele 36" Panel Ready MasterCool Built-In Bottom Freezer Refrigerator-0
Miele 36" Panel Ready MasterCool Built-In Bottom Freezer Refrigerator-1
Miele 36" Panel Ready MasterCool Built-In Bottom Freezer Refrigerator-2
Miele 36" Panel Ready MasterCool Built-In Bottom Freezer Refrigerator-3
Miele 36" Panel Ready MasterCool Built-In Bottom Freezer Refrigerator-4

At a Glance

Product Dimensions 83.625"h x 35.25"w x 23.875"d

Bring sophisticated performance and seamless design to your kitchen with the Miele MasterCool KFMC 3642 L, a premium 36" bottom-mount refrigerator designed to integrate beautifully with custom furniture fronts. MasterFresh Pro helps preserve food freshness, while the Longlife AirClean System minimizes unwanted odors. With an intuitive M Touch Pro interface, built-in IceMaker, NoFrost technology, and refined ColdSteel interior, this refrigerator combines advanced functionality with a clean, fully integrated aesthetic.Read More

$12,999.00

What We Offer

Get to know this product.

Product Overview

Product Overview

MasterFresh Pro - Protective Storage for Long-Lasting Freshness

The drawers of your Miele MasterCool appliance provide the perfect climate for the gentle storage of your food. In the automatically controlled temperature range between 32 and 37°F (0 and +3°C), vitamins and minerals are preserved for a long time. Thanks to the electronic humidity controls in the drawer, meat, fish and dairy products stay fresh up to 3 times longer and fruit and vegetables up to 5 times longer.

Longlife AirClean System - Fresh Food Without Unpleasant Odors

Noticeably reduce odors and their transfer to food by up to 95%: The filter is located in the air flow of the appliance, for an exceptionally long-lasting and effective reduction in odors. To ensure a long service life, the filter can be reactivated in the oven to reduce the odor load. This means it remains functional for a full three years. The above-average service life ensures sustainability and conservation of resources.

IceMaker - Ice Cubes for Cold Drinks

The IceMaker enables your Miele bottom-mount unit to produce up to 3 lb (1.4 kg) of fresh ice cubes a day, completely automatically. With a plumbed water connection, ice cubes are produced continuously until the ice cube container is full. A water filter ensures optimum water quality.

Spill-proof Glass Shelves - Protection when Liquids Leak

No need to panic if something leaks: The glass shelves have an aluminum profile on all sides which blocks leaking liquids and protects the lower levels of the refrigeration appliance interior.

SmartLight - Individually Customizable Lighting

Adjust the illumination according to the time of day and lighting mood: In your Miele MasterCool appliance, a sensor ensures that the brightness in the interior is automatically adjusted to the ambient light. You define how much the light is dimmed down in the dark or twilight and always benefit from optimum illumination without unpleasant glare effects.

Gallon Bins - Door Shelves for Large Containers

Wonderful use of space: Large containers for liquids, such as gallon containers, can be safely stored in the door shelves, leaving more space inside for other food.

DynaCool - Perfect Food Storage

Top or bottom – where is the best place to store your groceries? Thanks to DynaCool, you’ll never have to ask yourself this question again. In Miele MasterCool refrigeration appliances, you can store your food wherever you like, as a fan on the rear panel of the refrigerator compartment circulates the cold air – for a uniform temperature throughout the entire unit.

NoFrost - Defrosting is a Thing of the Past

All Miele MasterCool appliances – both refrigerators and freezers – are equipped with a sophisticated NoFrost system. It saves you the trouble of defrosting and cleaning the appliance. Automatic defrosting also protects the evaporator units – not to mention the environment, as the appliance is particularly energy-efficient to keep cool because it is constantly free of ice.

Miele@home2 - Cleverly Networked

With our innovative Miele@home system, you can exploit the full potential of your Miele appliances and make your everyday life even smarter. All intelligent Miele domestic appliances can be networked conveniently and securely. Operation is simple – whether you use the Miele app, voice control, or integration into existing Smart Home solutions. The appliances are networked via a home Wi-Fi router and the Miele Cloud.

DailyFresh ExtraCool - More Freshness Thanks to Low-Temperature Drawer

The spacious drawer in the fridge section offers space for lots of fresh food and has a lower temperature than the rest of the refrigerator, which means that meat, fish, and dairy products stay fresh for longer.

M Touch Pro - Convenient Operation at Your Fingertips

Intuitive to use for excellent convenience: The innovative, high-resolution TFT touch display allows you to configure all kinds of settings directly on your MasterCool appliance. A single touch of a fingertip on the ergonomically positioned display is all it takes to adjust the temperature to suit your preferences. Step-by-step instructions and helpful information are available for selected processes, such as replacing or cleaning the filter.

MaxLoad Hinge - Safe Handling Guaranteed

The extremely strong door hinges can safely cope with large, heavy, and fully laden refrigerator doors, and still open smoothly. The doors can be opened wide, which makes loading and unloading the refrigerator easy and convenient.

FoodView - Cameras keep everything in full view at all times

Integrated cameras allow you to keep an eye on the contents of your refrigeration appliance at all times, no matter where you are. Use the Miele app to check exactly what supplies you still have at home.

Useful Documents
Specifications

General Specs

ColorCustom
Color/Finish NamePanel Ready
Door ColorCustom
Handle ColorCustom
Fingerprint Resistant FinishNo
Type of RefrigeratorBottom Freezer Refrigerator
Installation TypeBuilt-In
Manufacturer Recommended Water FilterKWF 2000
Depth TypeCounter Depth
Number of Doors4
Total Capacity (cu. ft.)18.82
Refrigerator Capacity (cu. ft.)12.71
Freezer Capacity (cu. ft.)6.11
Freezer Door TypePull Out Drawer
Defrost TypeAuto Defrost
Door Panel TypePanel
Door Swing OptionLeft Hinge
Ice Maker TypeSingle Ice Maker
Ice TypeFull Size Cubes
Ice MakerYes
Ice/Water DispenserYes
Dispenser LocationInternal
Defrost SystemAutomatic
Refrigeration General FeaturesIce Water Filtration, LED Light, Lighted Ice Bin, Freezer Light, Digital Temperature Control, Sabbath Mode
Refrigeration Dispenser FeaturesWater Filtration, Water Dispenser
Custom Panel ReadyYes
Garage ReadyNo
Zero Clearance HingeNo
Smart CompatibleYes
Commercial Use ApprovedNo
Manufacturer Recommended Air FilterKKF-RF
Appliance Fit Width (in.)36
Width (in.)35.25
Depth (in.)23.875
Depth w/Door Open 90 Degrees (in.)44.875
Depth Excluding Handles (in.)23.875
Height (in.)83.625
Height Without Door/Hinge (Case) (in.)83.625
Overall Height (in.)83.625
Product Weight (lbs.)501
CollectionDiamond
MPN12489490
SeriesDiamond
ENERGY STAR CertifiedYes
ADA CompliantNo
Manufacturer Warranty2 Year Parts and Labor, 5 Years Sealed System
Voltage110/120
Frequency60
Amp10
